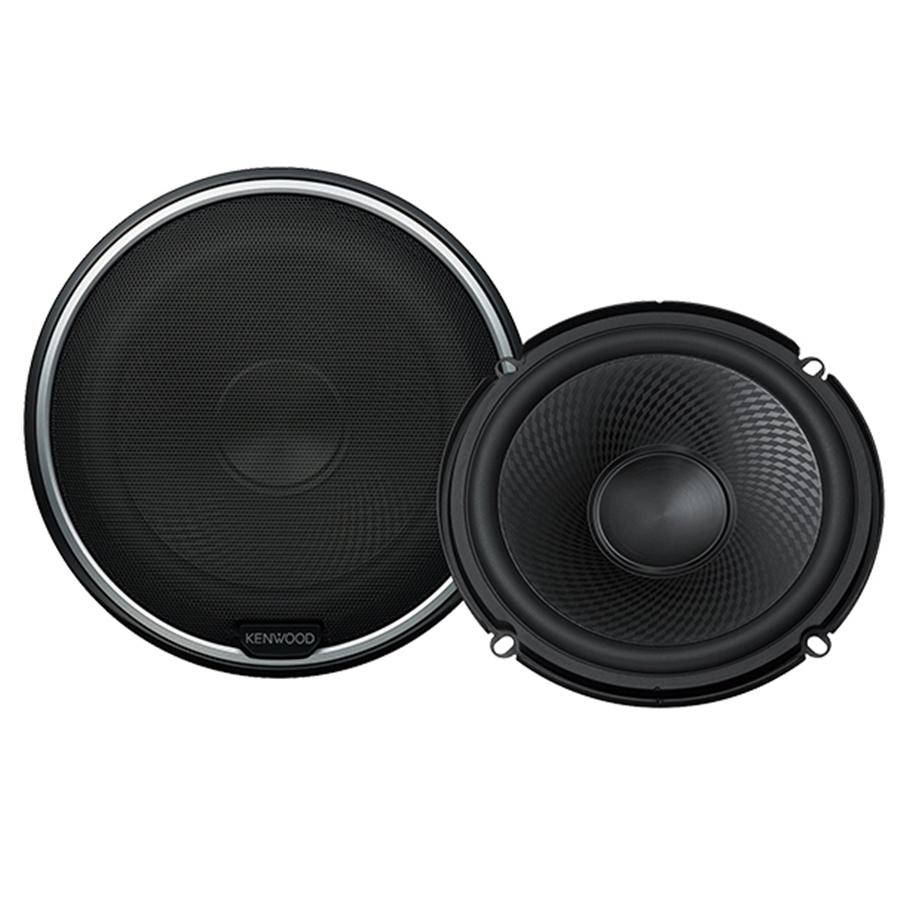

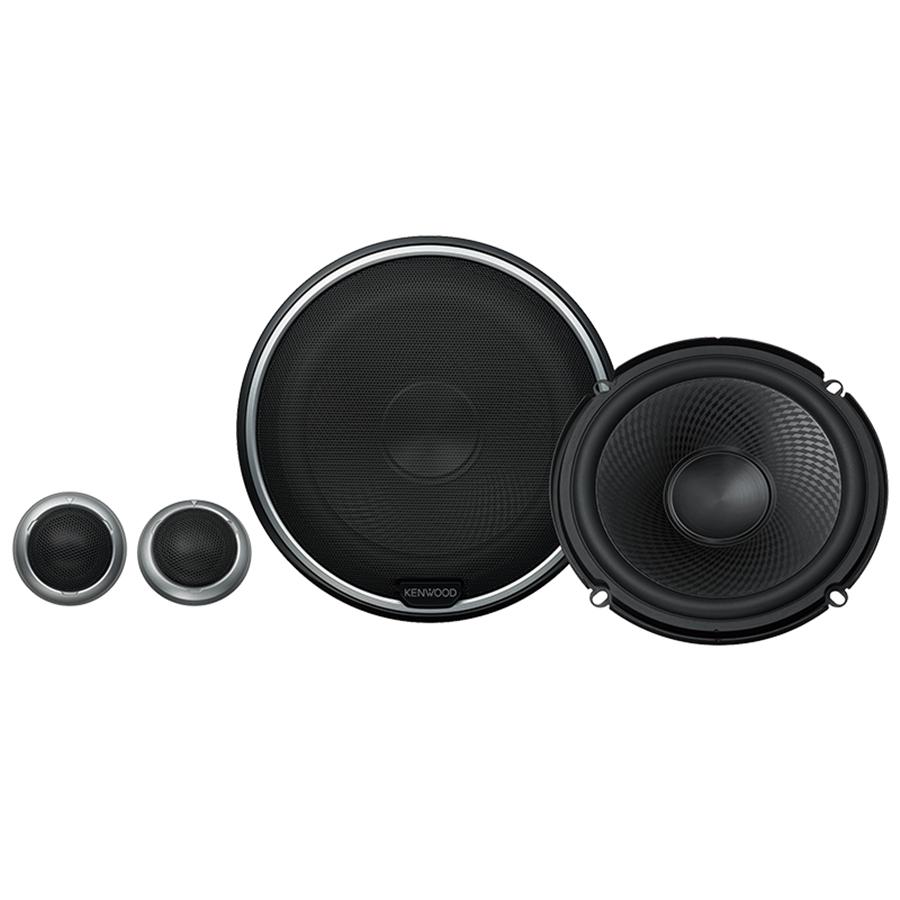

Kenwood KFC-P710PS 6.5'' Component Speakers and Tweeters, For Car, Black

Item: 46-KFC-P710PS

6.5'' Component Speakers and Tweeters

. Peak Power 280W
. PP Cone with Diamond Array Pattern
. Advanced Crossover Network
. 1'' Swivel Dome Tweeter

SPECIFICATIONS

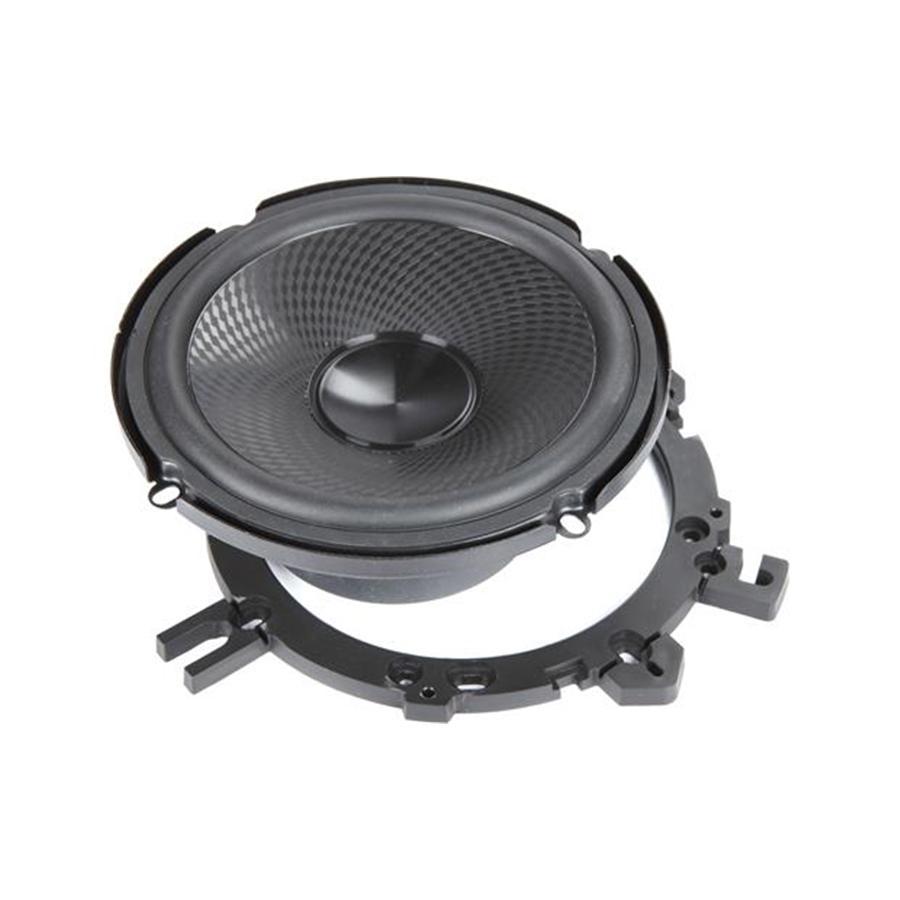

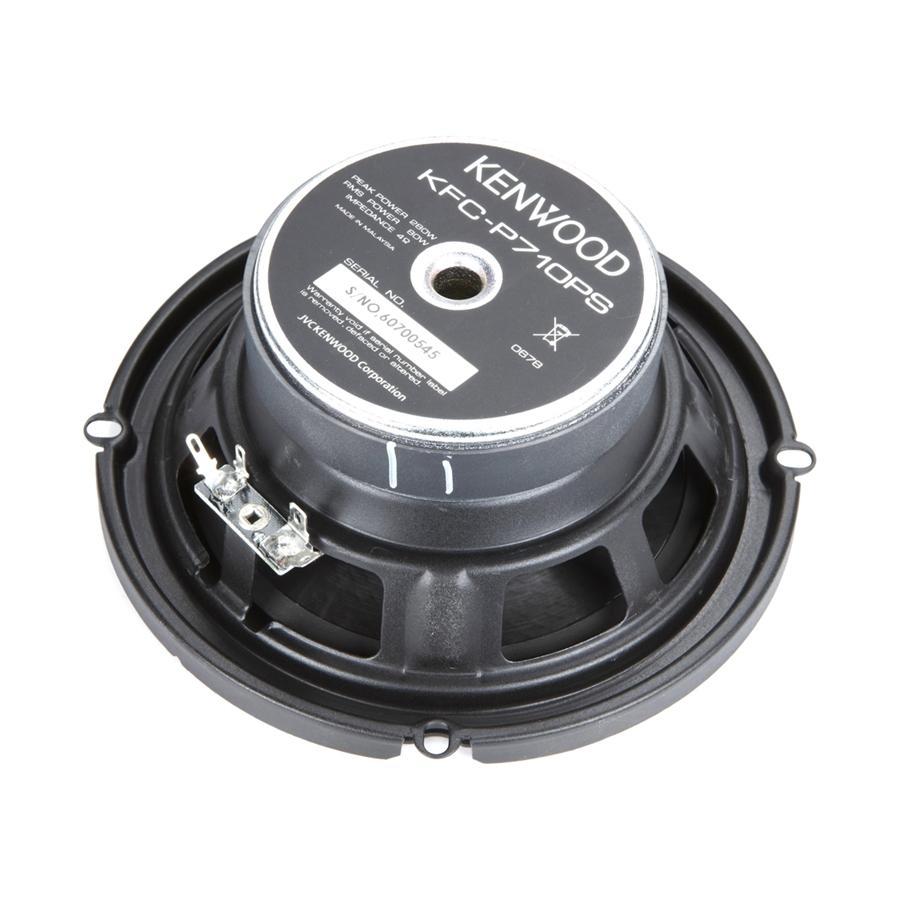

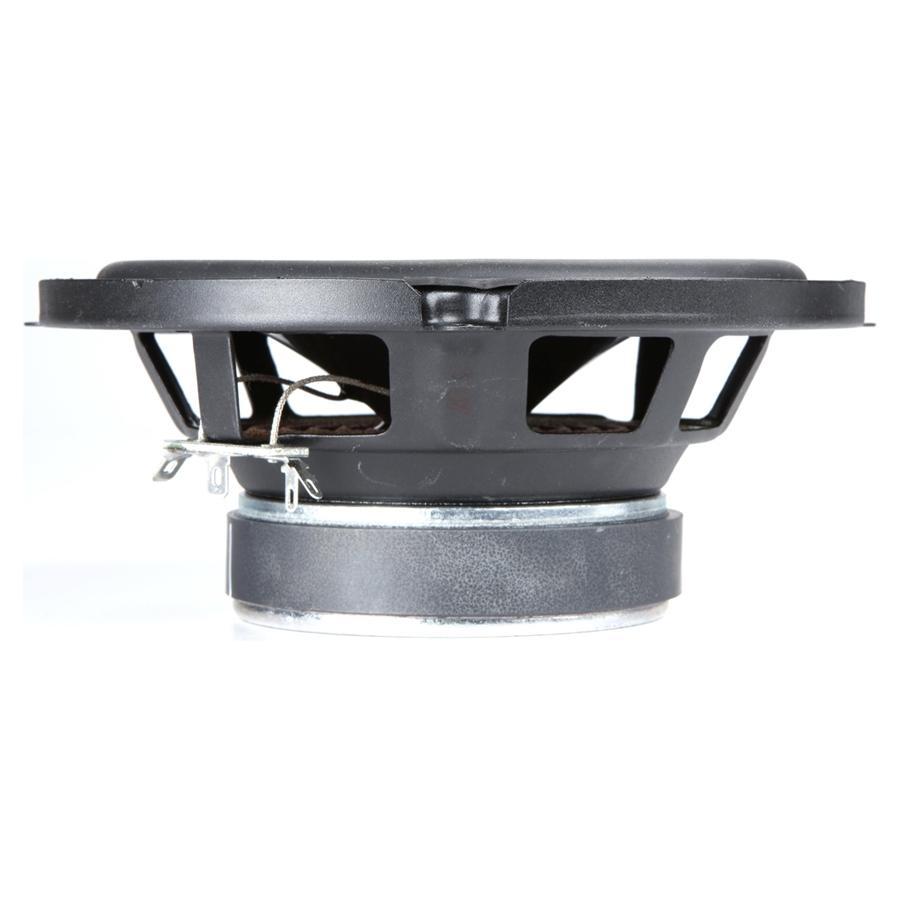

WOOFER
Size: Oversized160mm, 6-1/2in
Diaphragm: Injection P.P. cone
Surround: Rubber
Basket: Steel, Black
Magnet: Ferrite, 90*t15

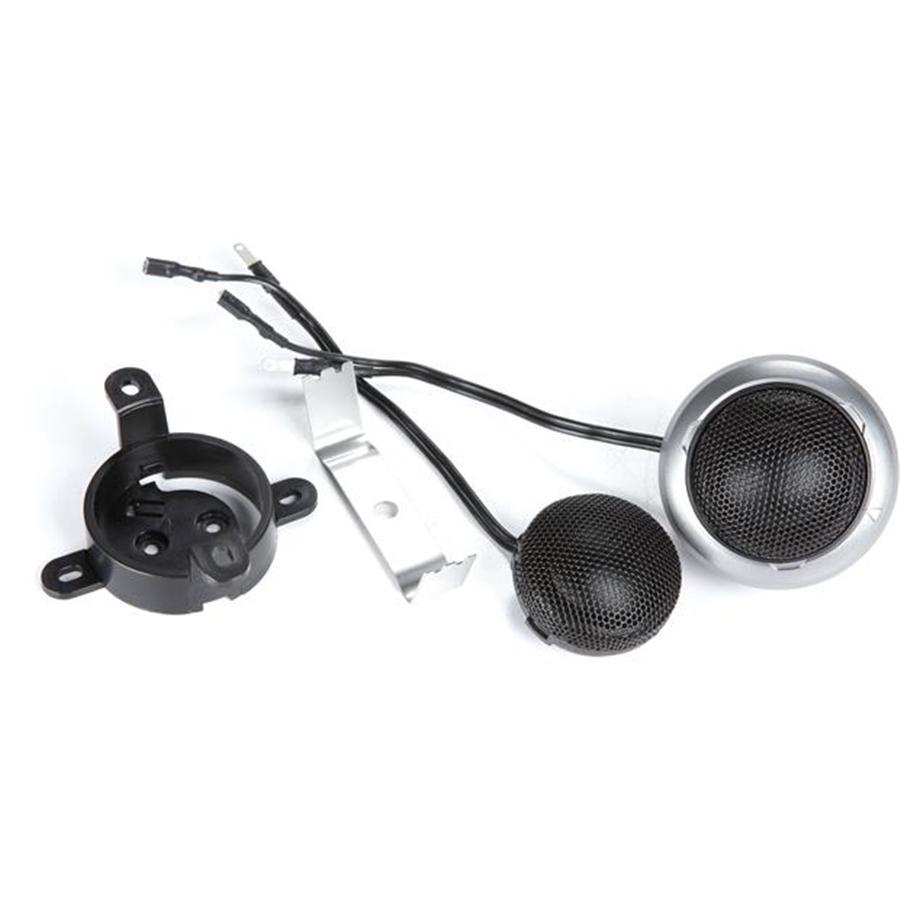

TWEETER
Size: 25mm, 1in.
Diaphragm: Soft Dome
Magnet: Neodymium, 23.5*t3.4

NOMINAL IMPEDANCE
Nominal Impedance: 4 Ohms

POWER HANDLING
Peak Power : 280W
RMS Power (CEA SPEC): 80W

SENSIVITY
Sensivity: 86 db / W at 1m

FREQUENCY RESPONSE
Frequency Response: 63Hz-24,000Hz

CROSSOVER FREQUENCY
Crossover Frequency: 4,900Hz

DIMENSION

WOOFER (UNIT)
Width (w_Gr): 180.0mm, 7-1/16in
Width (w/o_Gr): 158.0mm, 6-1/4in
Height (w_Gr): 180.0mm, 7-1/16in
Height (w/o_Gr): 158.0mm, 6-1/4in
Cutout Diameter: 126.0mm, 4-15/16in
Depth (w_Gr): 84.2mm, 3-5/16in
Depth (w/o_Gr): 68.8mm, 2-11/16in
Mounting Depth: 56.0mm, 2-3/16in

TWEETER
Width: 37.5mm, 1-1/2in
Height: 37.5mm, 1-1/2in
Depth: 19.1mm, 3/4in

WEIGHT
Woofer with Grille (pc.): 990g, 2.2lbs
Woofer without Grille (pc.): 900g, 2.0lbs
Gross Weight: 2,800g, 6.2lbs
Weight of Magnet (Woofer) :330g, 11.7oz
