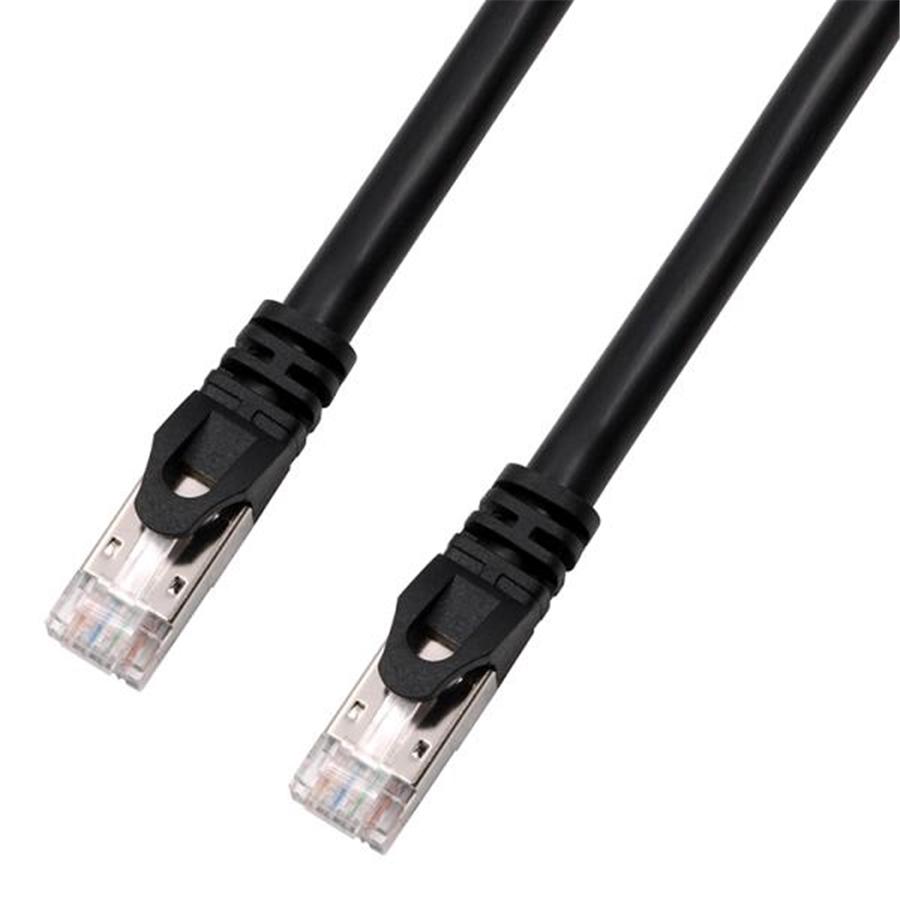

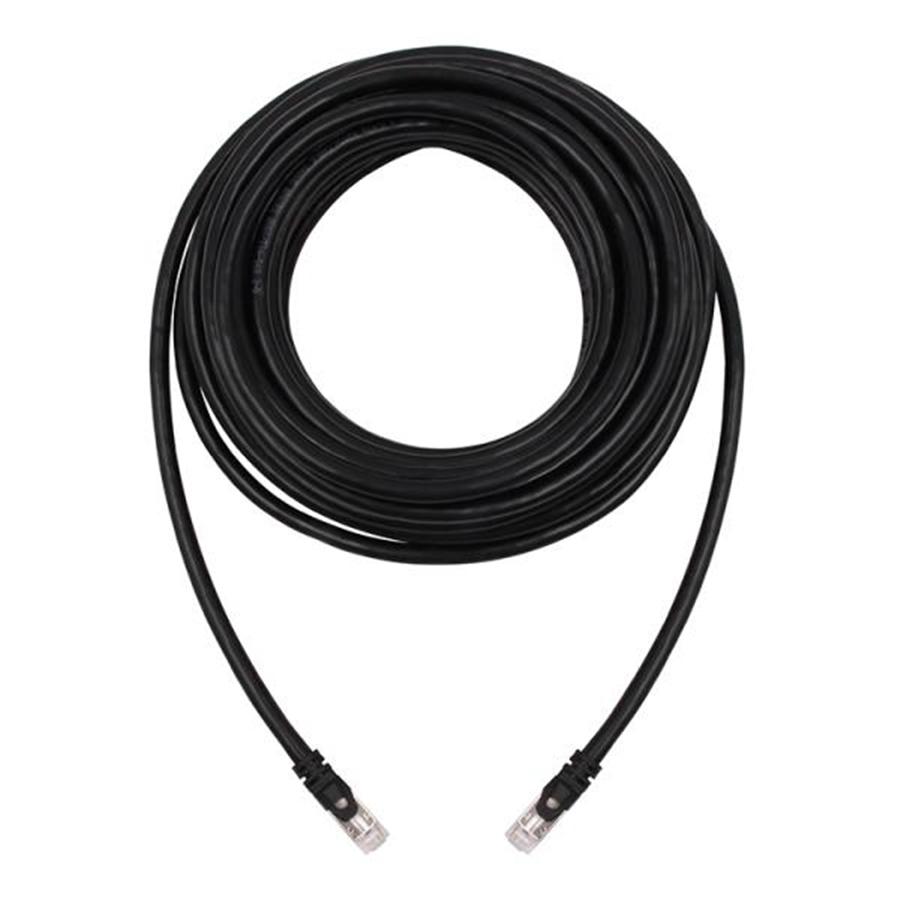

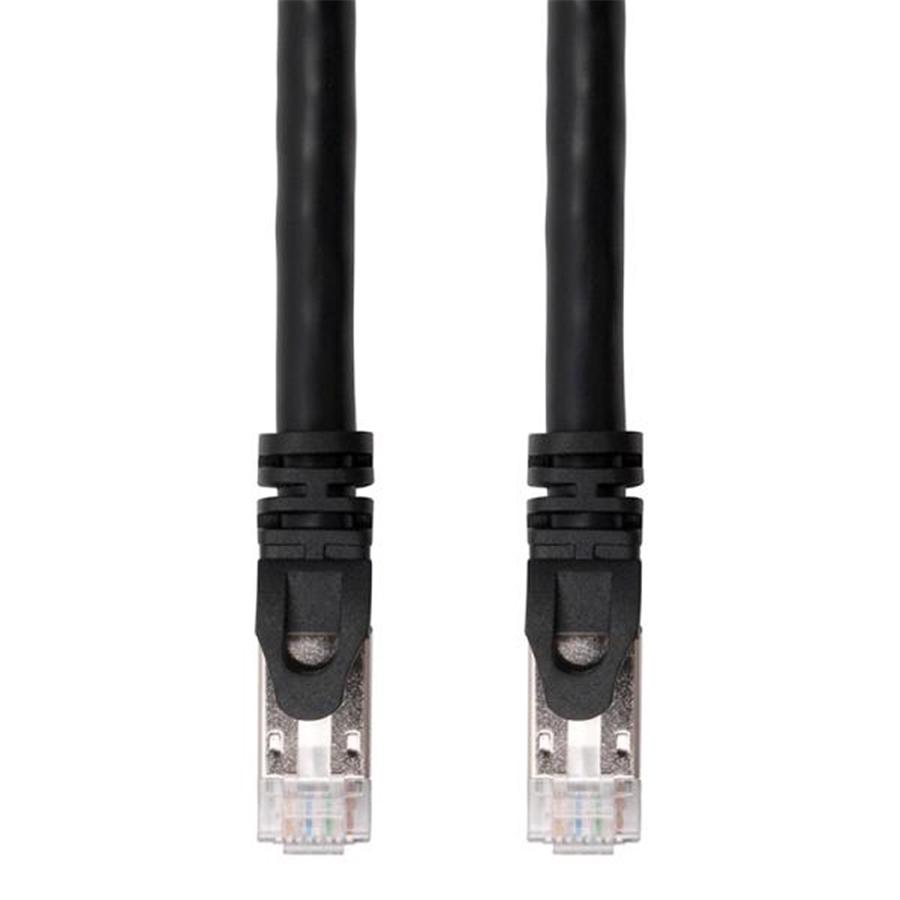

TechCraft - FTP Network Cable with Metal Connectors CAT8, Shielded, 35 Feet Length, BlackItem: 98-C-C8-35BK
TechCraft CAT8 Shielded network cables transmit at up to 40 Gbit/s
Heavy Duty High Speed Cat8 LAN Network RJ45 Cable
24 AWG Pure Copper Conductors
PVC Jacket
Max data rate: Up to 40Gbps
Overview:
- Bandwidth: 2000MHz
- OD: 8.0mm
- Conductor: 24AWG (7/0.20), Stranded Bare Copper
- Approvals: RoHS
- Connector: 50u" Gold Plated RJ45 Connector
Physical Characteristics:
- Cable Type: Cat8 S/FTP
- Connector Type: RJ45
- Wiring Scheme: T568B
- Temperature Rating: -20C - +75C
- Voltage Rating: 30V
- CAT8 S/FTP [1P/24AWG(7*0.20BC)+AL)*4 + BRAID (16*8/0.12AL-MG)
Conductor (4 Twisted Pair):
- Conductor Type: 24AWG (7/0.20), Stranded Bare Copper
- Insulation: FOPE
- Diameter: 1.4+-0.05mm
Connector Type:
- Connector Type: Shielded 8P8C RJ45 Male
- Connector Material: PC
- Contact Material: Copper Alloy with 50um Gold Plating
- Connector Shield: Shielded Nickel Plating
- Hood Material: PVC Molded Boot
Overall Cable:
- Jacket: PVC
- Minimum Average Thickness: 0.6mm
- Outer Diameter: 8.0 +- 0.20mm
Electrical Characteristics:
- Conductor DC Resistance: 9.5Ohm/100m (Maximum)
- Impedance: 100Ohm
- Capacitance: 5600pf/100m
- Propagation Delay: 545ns/100m (Maximum)
- Delay Skew: 45ns/100m (Maximum)
- Pass FLUKE Channel Test (100% Test)
Cable Markings:
25/40GBase-T CATEGORY 8 S/FTP PATCH CABLE 24AWG 4PAIRS ANSI/TIA-568.2-D
